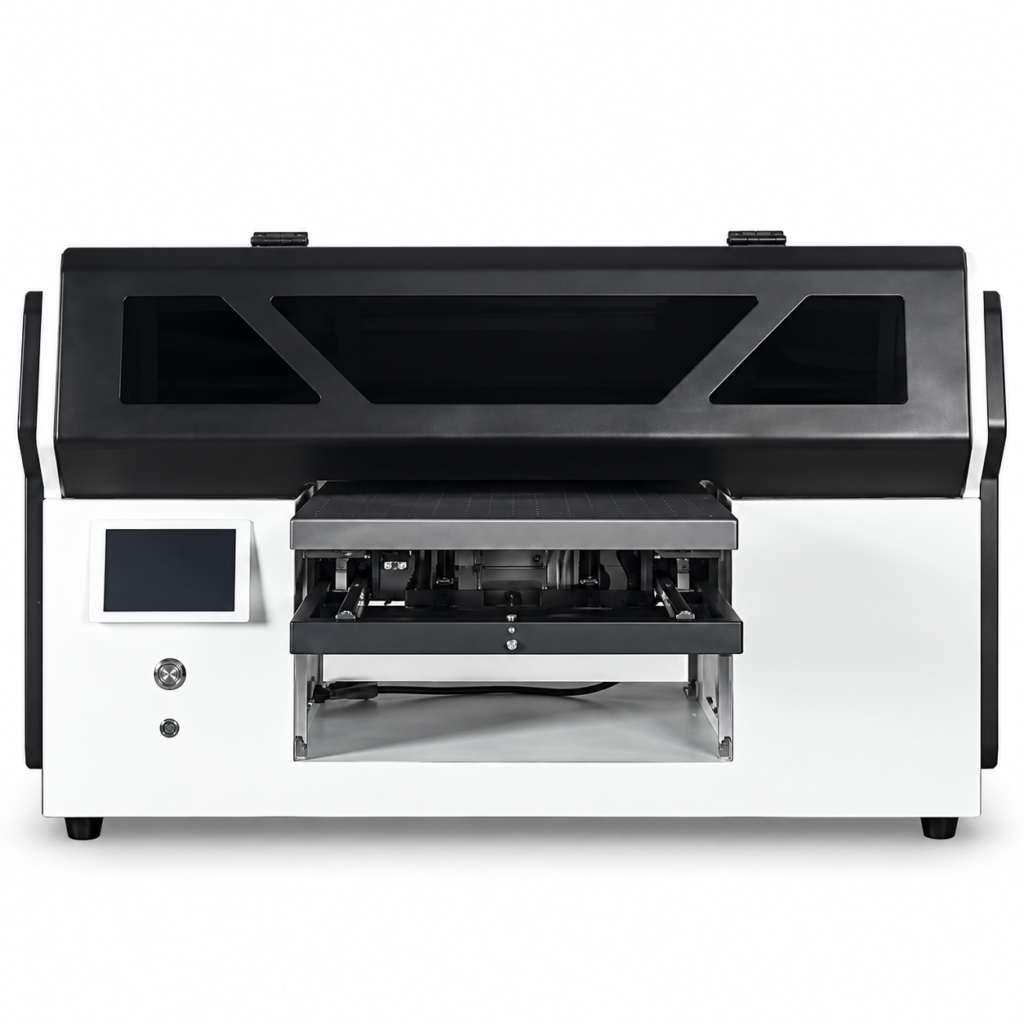

Front view of the black-and-white FJ-3050UV desktop UV flatbed printer
1 / 4

1 / 4
EQUIPMENT / CONFIGURATION INQUIRY
UV Flatbed Printers

FJ-3050UV Desktop UV Flatbed Printer

FJ-3050UV
300 × 500 mm UV flatbed printing with CMYK + white ink and optional cylindrical printing.
  • 300 × 500 mm print area
  • One printhead with CMYK + white ink
  • Standard aluminum vacuum bed
  • Automatic height measurement and motorized lifting; 0–80 mm range
  • Pressure-feed ink supply with automatic white-ink agitation
  • Automatic ink spraying, moisture preservation and one-button cleaning
  • Optional cylindrical printing
Request a Quote
Request a Print Sample

Share your material, artwork and destination to discuss a suitable configuration. Material compatibility and sample arrangements need confirmation.

Printing area
300 × 500 mm (30 × 50 cm)
Print height
0–80 mm
Ink
CMYK + White
Power
AC 110 V / AC 220 V, 50 Hz; 350 W
PRODUCT OVERVIEW

Built around your application.

300 × 500 mm desktop UV printing

The FJ-3050UV is a compact UV flatbed printer with a 300 × 500 mm print area and one printhead. Its aluminum vacuum bed holds flat materials, while automatic height measurement and motorized lifting provide a stated adjustment range of 0–80 mm.

CMYK plus white ink

The stated ink configuration is cyan, magenta, yellow, black and white. The ink supply uses a pressure-feed system with automatic white-ink agitation. Printhead maintenance functions include automatic ink spraying, moisture preservation and one-button cleaning.

Materials and optional cylindrical printing

The supplier lists glass, acrylic, ceramic, metal sheet, paperboard, fabric, wood, leather, PVC, PP, PE and PTFE as candidate flat materials. Bottles and insulated tumblers are also listed with optional cylindrical printing. Confirm the rotary accessory, workpiece dimensions and surface preparation with a material test before choosing a configuration.

Workstation and installation

The supplied operating-system requirement is Windows; macOS is not supported. Stated electrical requirements are AC 110 V / AC 220 V, 50 Hz, with 350 W whole-machine power. Confirm the voltage version for your destination. The specified environment is 10–35 °C and 30–70% relative humidity, non-condensing.

Request a configuration quote

Share your material, object dimensions, artwork and destination so the print configuration, optional cylindrical accessory, software and delivery terms can be confirmed.

CONFIGURATION DETAILS

Technical specifications

Technical specifications for FJ-3050UV Desktop UV Flatbed Printer
Printing area300 × 500 mm (30 × 50 cm)
Printhead count1
Print height0–80 mm
Ink configurationCMYK + White
Power requirementsAC 110 V / AC 220 V, 50 Hz; 350 W
SoftwareWindows required; macOS not supported. Software names and versions not specified.
Machine dimensions800 × 840 × 500 mm (manual measurement)
Net weightApproximately 60 kg; varies with accessories and ink quantity
Materials — testing requiredSupplier-listed materials: glass, acrylic, ceramic, metal sheet, paperboard, fabric, wood, leather, PVC, PP, PE and PTFE. Material testing and surface preparation must be confirmed. Bottles and insulated tumblers require the optional cylindrical-printing configuration.
Print platformStandard aluminum vacuum bed
Cylindrical printingOptional; accessory and workpiece compatibility require confirmation
Printhead maintenanceAutomatic ink spraying, automatic moisture preservation and one-button cleaning
Ink supplyPressure-feed system; automatic white-ink agitation
Image formatsTIFF, BMP, JPEG and PDF; software workflow requires confirmation
Resolution (supplier notation)1440*2160*2880 dpi; the notation and available modes require confirmation
Operating environment10–35 °C; 30–70% relative humidity; non-condensing
Operating systemWindows; macOS not supported
MotorHigh-precision servo motor
Height adjustmentAutomatic height measurement / motorized lifting
Wooden-crate dimensions950 × 940 × 620 mm (manual measurement)
Listed package contentsOne printer, one ink set, printing/layout/drawing software, power cable, data cable, two spare ink dampers, one bag of spare screws, one bottle of moisturizing fluid and one pack of lint-free cloths. Exact software and accessory contents require confirmation.

The final equipment configuration and supply scope are confirmed in the written quotation.

A clearer path from inquiry to delivery.

01 / Requirements

Share your materials, print size, volume and destination.

02 / Configuration

Review the proposed equipment and any model-specific limitations.

03 / Written quotation

Confirm scope, payment milestones and delivery responsibilities.

04 / Checks & coordination

Agree the pre-shipment checks and technical handover in writing.

Availability and service scope depend on the selected supplier and written agreement.

Product questions

What is the print area of the FJ-3050UV?

The supplier specifies a 300 × 500 mm print area, equivalent to 30 × 50 cm.

Can it print on cylindrical objects?

Cylindrical printing is listed as optional. Confirm the accessory, object diameter and length, and suitability for your bottles or tumblers before ordering.

What operating system is required?

The supplied specification requires Windows and states that macOS is not supported. The software names and versions have not been specified.

What is the stated object-height range?

The stated range is 0–80 mm, with automatic height measurement and motorized lifting. Confirm clearance for the actual workpiece and fixture.

Which printhead model does it use?

The supplied specification lists one printhead but does not identify its brand or model. Request the exact printhead configuration in your quotation.

Support & warranty scope

Warranty and support scope will be confirmed in the quotation for your destination and configuration.
